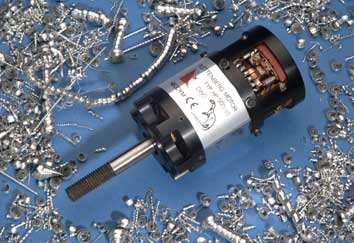

MOTOR SERIES HP 500/67
The
motors of the series HP 500 are big, robust four-pole collector motors
for scale models, F3A-X models, and big towing models. The motor power
can reach up to 4 KW. Special features are double ball bearing, neodym
magnets, easily exchangeable carbon brushes, tempered 12 mm shaft, and
an adjustable timing.
Weight: |
1990 g incl. prop-clutch (70 oz. motor only) |
| Variants: | 5 – 6 winds |
| Cells: | 2 x 30 or 3 x 30 cells |
| max. ETA: | ca. 88 % |
Example
of use:
|
Motor
|
Model
|
Cells
|
Prop
|
|
HP
500/67/6
|
Scale
Modelle
|
2
- 3 x 30
|
24“
– 26“
|
|
HP
500/67/6
|
Spitfire
(ca. 15kg)
|
2
x 30
|
26“x16“
Menz
|
These results
are
recommendations and may have to be adjusted individually. The propeller
values were determined on the testing bench and are only suggested
sizes.
Technical data subject to changes!
