JR Models, Brittan-Norman Islander 2
This is an ARF with a fiberglass fuselage and built-up wing and tail
surfaces. It was originally designed for 2 Speed 400's running in
parallel on 7 or 8 1400-2000 mah cells. It also had no landing gear,
hand launch only. I had since modified it with 2 geared AP-29's
and then 2 Velcom 2020/27's running on 8 cells each. Another
nice detail is the scale landing gear I designed and built with the
dual main wheels. It looks so much better this way. Scale
takeoffs and landings areso easy, and the extra power doesn't
hurt it at all.
Wingspan : | 53.5 in. | |
Wing Area : | 428 | |
Length : | 38 in. | |
Weight : | 67 oz. | |
Wing Loading : | 22.54 oz./sq. ft. | |
Motors : | 2 X velcom 2020/27 Cobalt (in series) | |
Gear ratio : | 2.5:1 Master Airscrew | |
Props : | APC 9" diam. X 10" pitch sport props | |
Batteries : | 16 Sanyo KR-1400 AE (in series) | |
Speed Control: | Viper Model Products "Speed Demon" Model 200 | |
Amps : | 18 amps. static | |
Watts : | ~ 288 watts | |
Watt loading : | 68 77 watts / lb. | |
RPM : | 7100 rpm |
The first 3 flights were done at Bay Area Radio Controllers field in
Richmond Ca. at their annual "Toys for Tots" flyin on 12/4/99. The
flights went without a hitch, she flies almost like a trainer. The
last flight
stretched to 8.5 minutes, with a beautiful touchdown and plenty of
power
left to taxi back to the pits! I had to forgo finishing up the last
trim color
and assemble the night before just to make this event. Isn't that just
the
story of my life. I originally had 8" X 10" APC props with 2.5:1
gears
and have since switched over to 9" X 10" APC with 3.5:1 gears. This
change lowered my static amp draw 6 amps thereby allowing longer run
time. The larger more efficient props also cut down on the takeoff
run
and giving it greater climb angles. It can even take off in tall grass
as seen

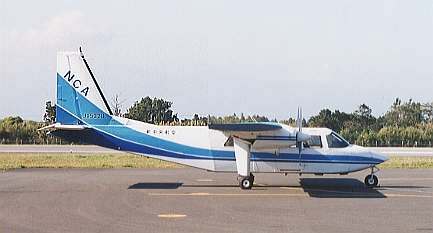

at the Sacramento Valley Soaring Society field on 3/4/00. The
pictures
above are of the full scale plane that I'm copying the paint
scheme from. I
don't have the paint completed yet, I'm just having too much fun flying
it. The
following pictures were taken at the 2000 San Diego Mid Winter Electric's.
I have flown this plane so many times that the motors finally wore out.
On
10/22/2000, they were replaced with Velkom cobalt 2020/27 motors. This
lowered the motor weight by .8 oz. between the two. The magnets are
so
strong that you have to grab the shaft with a prop driver to manually
spin
the motor! I also switched back over to 2.5/1 gearboxes. I expect much
better performance from the new powerplants. As soon as it get a few
flights, I'll do a report on that.

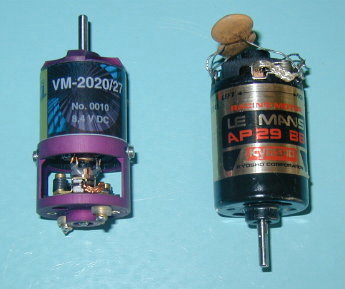

Here's a picture of the two motors sitting next each other for comparison.

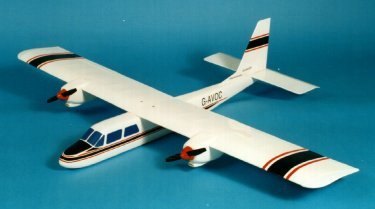

This is what the kit was to look like.

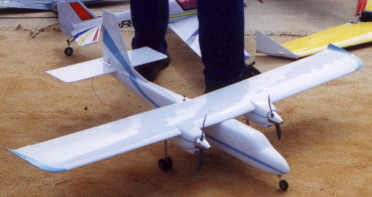

As she looked 2/16/00 (pictures by SWEETIE)
Custom landing gear
Takeoff at SVSS field
Flyby
Setting up for landing

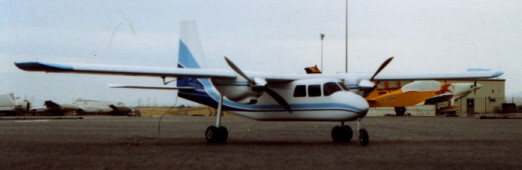

At the Byron CA Airport, above and below.

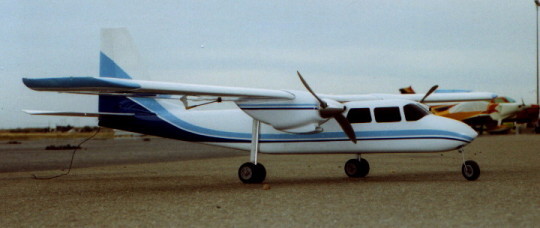

This is as it looked at Erv's Stud Fly, 5/6/00.

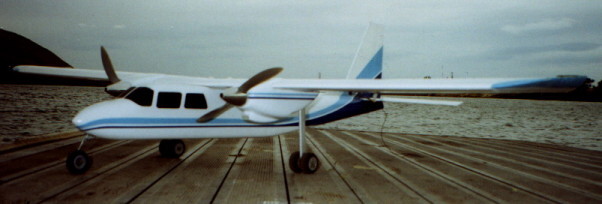

At the dock on Contra Loma Reservoir above and below.
This is as it looked at Erv's Stud Fly, 5/6/00.
